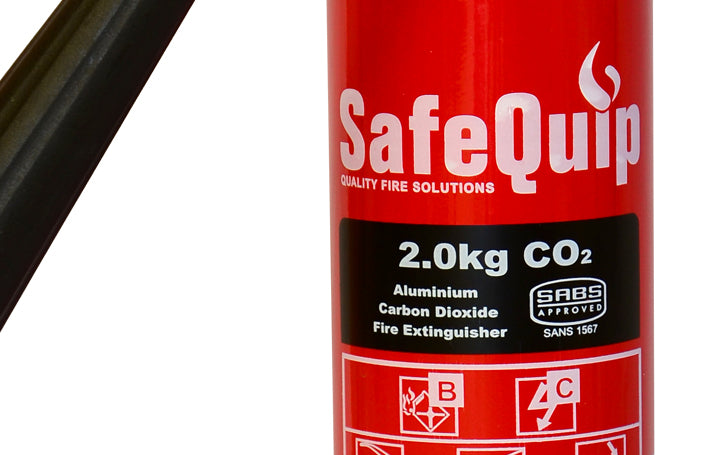

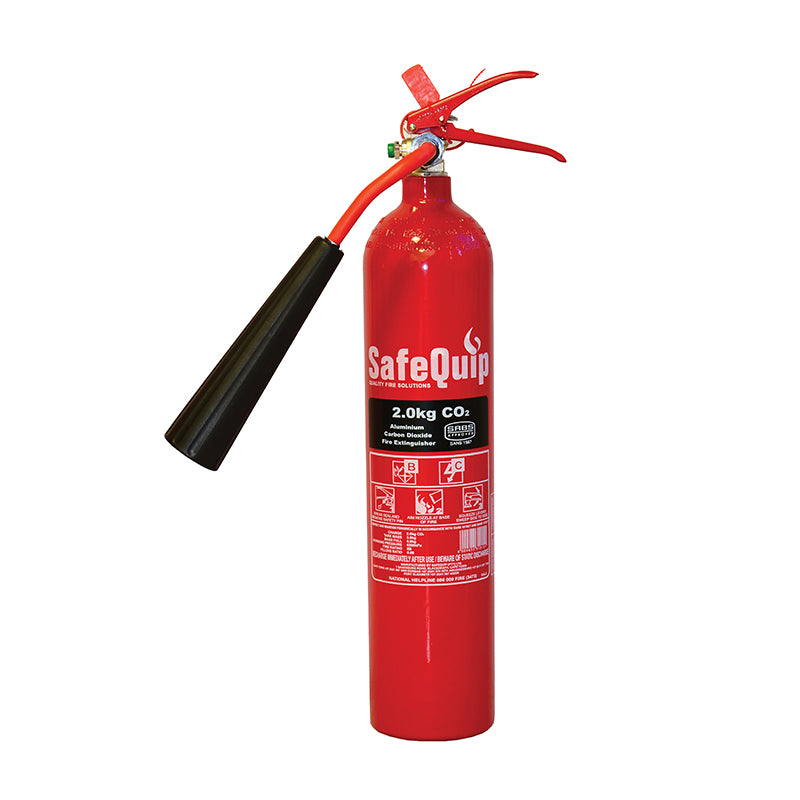

2kg CO2 Fire Extinguisher (Aluminium Alloy)

Description

The 2kg Aluminium Alloy CO2 Fire Extinguisher within the Safequip lineup boasts CE0036 TUV approval. Tailored for fires involving flammable liquids and electrical hazards—including Class C and Class B fires—these extinguishers are engineered to deliver top-tier performance. Our premium-grade carbon dioxide fire extinguishers, certified to SANS 1567:2003 standards, come encased in either steel or aluminum, featuring a design geared towards user convenience.

Constructed in adherence to SABS 1475 specifications, the body and components of the CO2 extinguisher ensure straightforward and safe maintenance, entrusted to skilled SAQCC technicians. With a fully equipped and charged extinguisher (excluding the bracket), the total mass does not exceed 23kg, adhering closely to the marked specifications within a tolerance of ±5%.

Versatile and adaptable, our CO2 extinguishers find applicability across marine, industrial, automotive, and commercial environments, including hospitals, supermarkets, hotels, restaurants, paint shops, fast-food chains, textile industries, industrial units, offices, and beyond.

Specifications
Cylinder Height	575mm
Diameter	111mm
Tara Mass	3.8kg
Mass Full	6.0kg
Discharge	>8sec
Effective Range	1-3m
Discharge Nozzle	Swivel Horn
Working Temperature	-30/+60°C
Max Working Pressure	174Bar
Test Pressure	250Bar
Design Standard	1997/23/EC
Safety Device	Bursting Disc 200±20Bar
Neck Ring Thread	M25 x 2.0 Parallel Thread
Inlet Thread	M10 x 1.0
Outlet Thread	W21.7 x 14
Capacity and Filling Ratio	3 litre / 0.66

Specifications	Cylinder
Material	AA6061
Cylinder Finish	Red epoxy powder coated
CE Verification	CE0036
Approval Mark	TUV / SANS1567
Packaging Size	160x130x595mm
Minimum Wall Thickness	6.32mm
Maximum Working Pressure	174Bar

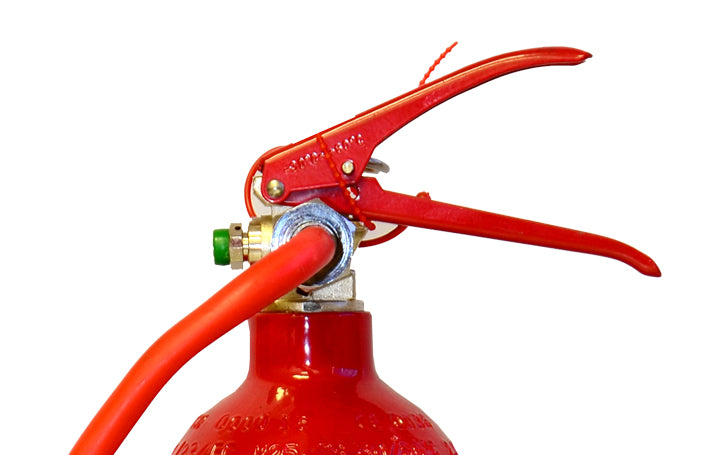

Specifications	Valve - WN52-21-1 Rev.0
Brass Spec	CZ 122 Die Forging Brass (HPB59-1)
Body	Forged Nickel plated side outlet
Maximum Pressure	22.5MPa±2.25MPa

Fire Rating: 8B

CE0036 TUV Approved
