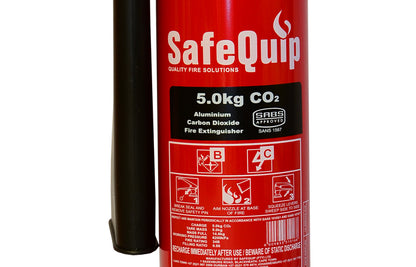

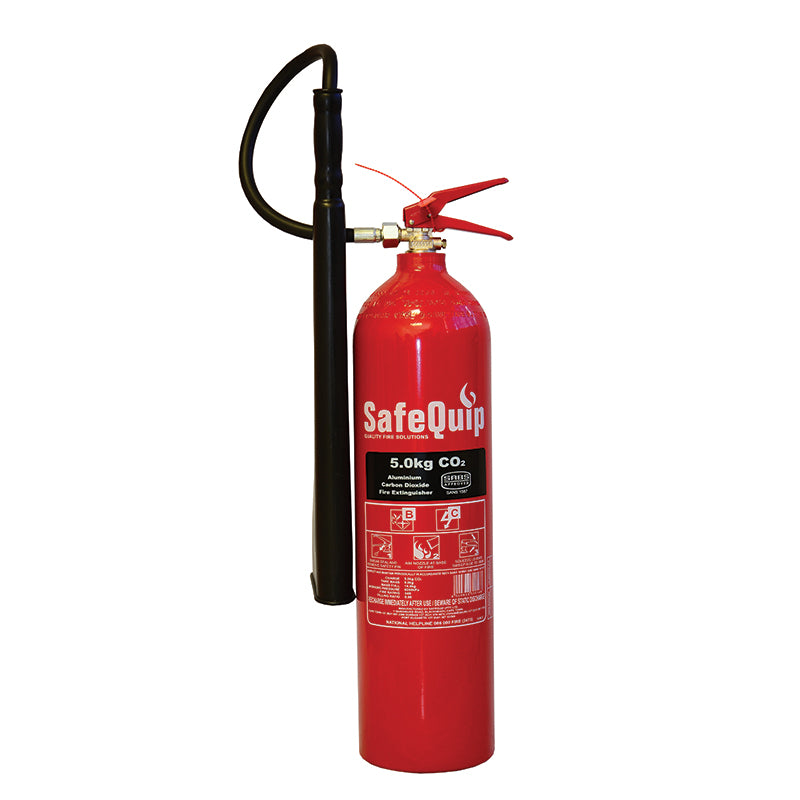

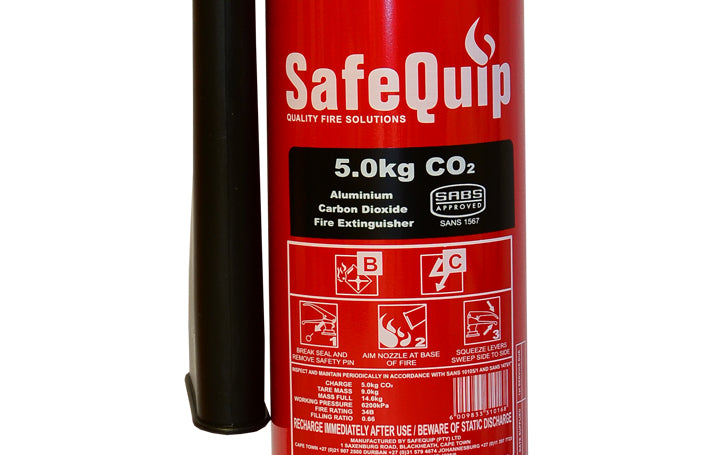

5kg CO2 Fire Extinguisher (Aluminium Alloy)

Description

The 5kg Aluminium Alloy CO2 Fire Extinguisher within the Safequip collection holds CE0036 TUV approval, ensuring its quality and reliability. These extinguishers are meticulously engineered for tackling fires involving flammable liquids and electrical hazards, including Class C and Class B fires. Our top-tier SANS 1567:2003 certified carbon dioxide fire extinguishers, encased in either steel or aluminum, are purposefully designed with user-friendliness in mind.

Constructed following SABS 1475 specifications, the body and components of the CO2 extinguisher ensure hassle-free and secure maintenance, overseen by skilled SAQCC technicians. With a fully equipped and charged extinguisher (excluding the bracket), the total mass remains under 23kg, matching the marked specifications with a tolerance of ±5%.

Versatile and adaptable, our CO2 extinguishers are ideal for various environments, including marine, industrial, automotive, and commercial settings such as hospitals, supermarkets, hotels, restaurants, paint shops, fast-food chains, textile industries, industrial units, offices, and more.

Specifications
Cylinder Height	690mm
Diameter	159mm
Tara Mass	8.5kg
Mass Full	14.2kg
Discharge	>13sec
Effective Range	1-4m

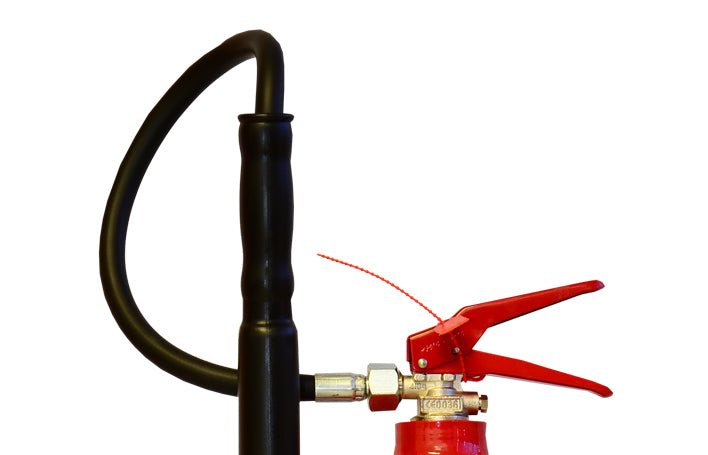

Discharge Nozzle	Hose & Horn
Working Temperature	-30/+60°C
Max Working Pressure	174Bar
Test Pressure	250Bar
Design Standard	1997/23/EC
Safety Device	Bursting Disc 200±15Bar
Neck Ring Thread	25E PZ27.8 x 14
Inlet Thread	M10 x 1.0
Outlet Thread	W21.7 x 14
Capacity and Filling Ratio	7.5 litre / 0.66

Specifications	Cylinder
Material	AA6061
Cylinder Finish	Red epoxy powder coated
CE Verification	CE0036
Approval Mark	TUV / SANS1567
Packaging Size	210x170x700mm
Minimum Wall Thickness	9.05mm
Maximum Working Pressure	174Bar

Specifications	Valve - WN52-01-0 Rev.0
Brass Spec	CZ 122 Die Forging Brass (HPB59-1)
Body	Forged Nickel plated side outlet
Maximum Pressure	22.5MPa±2.25MPa

Fire Rating: 34B

CE0036 TUV Approved
