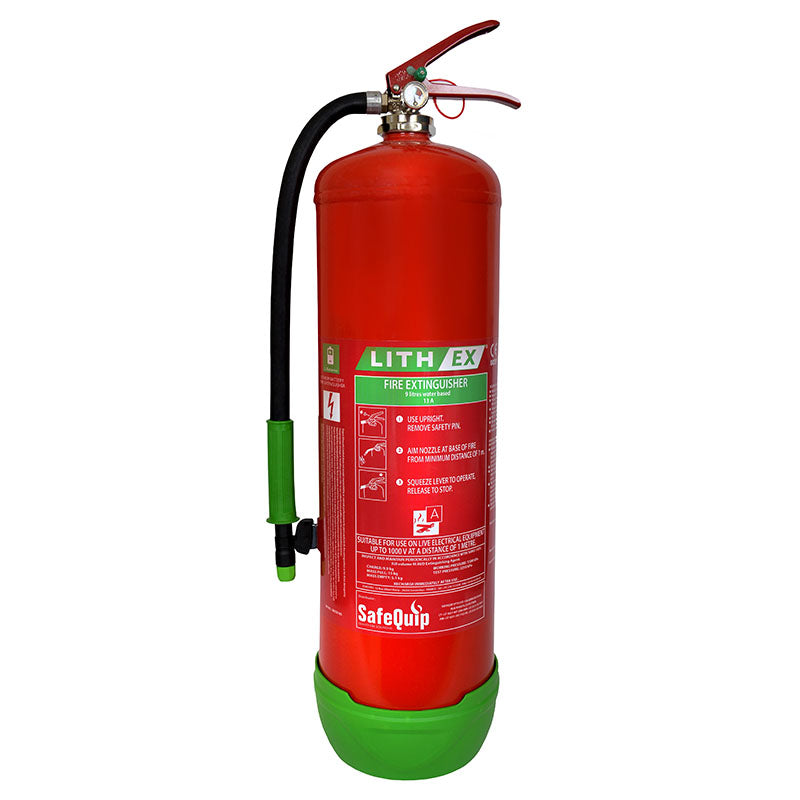

Lith-Ex AVD Fire Extinguishers

Fires involving Lithium batteries cannot be extinguished with regular extinguishing agents, because when a battery goes into ‘thermal runaway’, it goes into a thermal rampage, so to speak. This is accompanied by very high temperatures and a lot of gas formation. The Lith-Ex AVD fire extinguishers have been specially developed for quickly and safely controlling lithium-ion battery fires. ​

Lith-Ex AVD has been specially developed
for extinguishing battery fires

• ​Specially developed for battery fires
• Cools and shuts off the oxygen supply
• Proven to be the most effective extinguishing agent for battery fires
• Completely eco-friendly
• Also very effective with class-A fires
• Available from 2 liters to 100 liters extinguishing units

How does the AVD extinguisher work?

AVD stands for a water-based dispersion containing chemically exfoliated vermiculite. When sprayed on lithium battery fires, it extinguishes the flames and prevents further fire spread, effectively halting the progression of "thermal runaway."

Vermiculite, a key ingredient, is a naturally occurring non-combustible mineral that poses no toxicity risks to humans, animals, or the environment.

Specifications:
Capacity	9 Litres
Agent weight	9.9 kg
Total weight	15.0 kg
Total height	170 mm
Total diameter	170 mm
Min. working temp.	+5°C
Max. working temp.	+60°C
Approx. discharge time	180 secs
Operating pressure	15 bar
Extinguishing agent	AVD
Propellant	Nitrogen (3% He)
Viscosity [Sp3, 100rpm]	<500cP
Fire rating	13A
Conform EN3-7	EN12053
35kV dielectric test	35kV dielectric test
Bio degradable	Bio degradable
Non Toxic	Non Toxic
